The REJOOL PIONYR hydrogen compressor sets a new standard in H₂ compression. Compact, efficient, and reliable.
Dry-running compression, no lubricants or greases leads to zero contamination
Dry-running compression, no lubricants or greases leads to zero contamination
max. discharge pressure. Ideal for stationary and mobility applications
IP-safed static sealing system leads to permanently gas-tight design
20-40 bar (g)
350 bar (g)
1-5 Nm3/h (depending on inlet pressure and discharge pressure)
900 W (S1)
1.450 rpm (1.080-1.810 rpm converter operation)
3~AC400V/50 Hz, 3~AC230V/50 Hz, 1~AC230V/50 Hz
active air-colling with DC-compact ventilator
suitable for ATEX zone 2, Temperature class T3

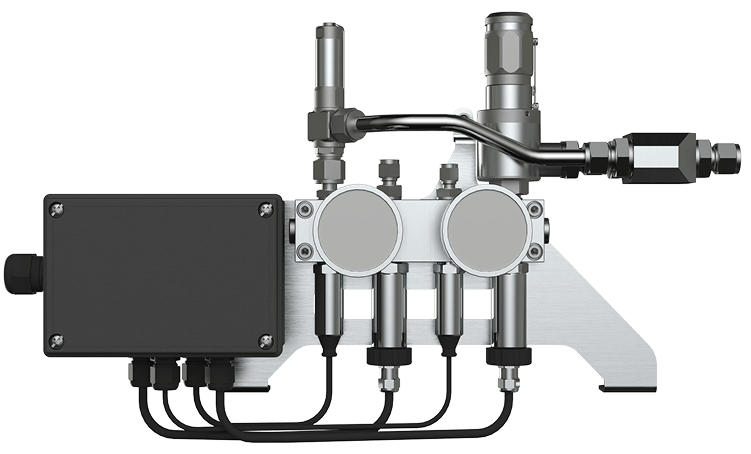

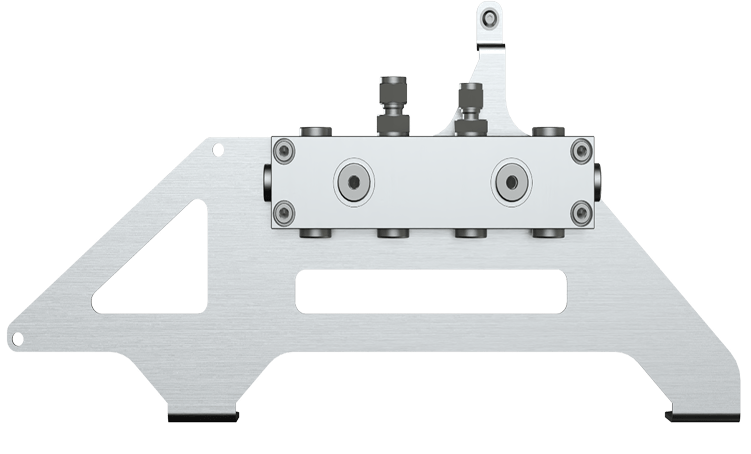

Easily adjust our equipment module to your specific project needs
Ensure reliable protection of the hydrogen compressor and system by preventing overpressure. Safety valves protect both the inlet side (p > 40 bar) and the outlet side (p > 350 bar), securing safe operation at all times.
Deliver precise, real-time pressure data directly into customers PLC system. Enable automated monitoring and control of both inlet and outlet pressures, ensuring efficiency, compliance, and early fault detection.
Provide clear and accurate pressure readings for safe system operation. Ideal for quick visual checks on both inlet and outlet sides, supporting straightforward maintenance and monitoring. Required according to 2006/42/EC, Machinary Directive.
Offer dependable switching functionality when critical pressure thresholds are reached. Pressure switches add an extra layer of safety and control, helping to prevent system overloads or pressure drops.
